RA-01 G

Technical Data

Name
RA-01 G
Type
Automatic Silkscreen
Description
Automatic silkscreen balloon printing machine - 2 colours on 2 sides and simultaneously no printing log or 1 colour all around
ADVANTAGES:
- high printing speed
- easy registration
- minimum waste of energy
-duplex printing proces
- automatic drying system
- integration with automatic feeder RF350

Built according to EC Safety Standards and Regulations.
Adding a monitor and some other accessories you can check the printing quality while you're loading balloons on the printing machine.
Availability
On request
Print colors
1, 2

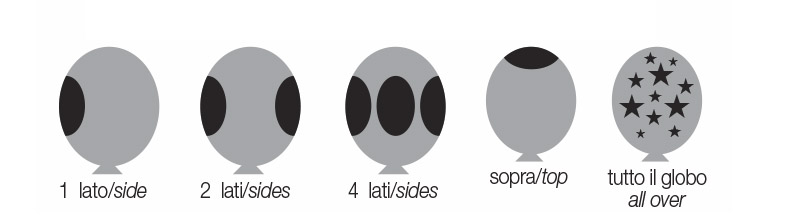

Sides Printing
From 1 to 4 sides + top of balloon or 2 sides simultaneously
Productivity per hour
1500 pieces per hour
Measures balloons
- 5, 6, 7, 8, 9, 10, 12, 14, 18 inch standard round balloons
- Heart shaped balloons 5 and 12 inch
- Punchballs
Size
cm 240 x 200 x 160 h
Weight
400 kg
Drying
Hot air - included
Comments
INFLATED BALLOON PRINTING PROCESS
VOLTAGE AS YOU NEED
Air pressure
8 bar
Air consumption
160 litres per minute
Compressor
Not included

Contact us for more information

With this machine can print …

Spare parts

titolo pezzo ricambio

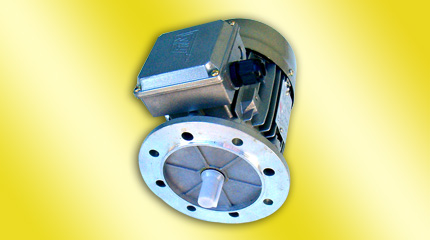

RF25-RA-01
Description

Motor

titolo pezzo ricambio

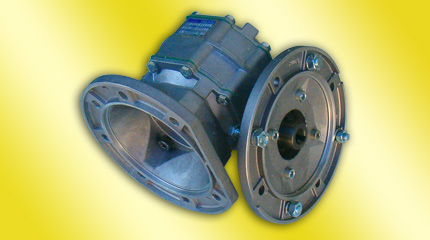

RF26-RA-01
Description

Reducer

titolo pezzo ricambio

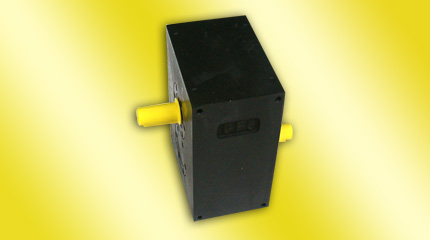

RF27-RA-01
Description

Transmission box

titolo pezzo ricambio

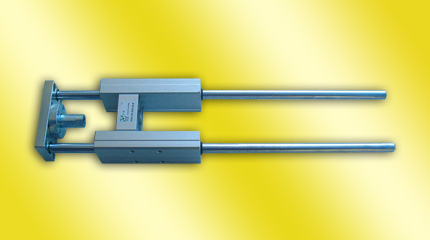

RF31-RA-01
Description

Large Guide

titolo pezzo ricambio

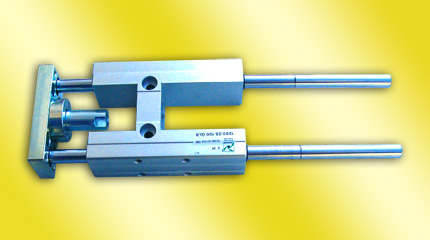

RF32-RA-01
Description

Small guide

titolo pezzo ricambio

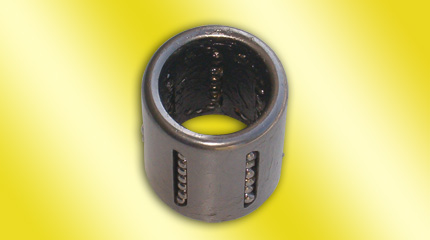

RF33-RA-01
Description

Sliding muff

titolo pezzo ricambio

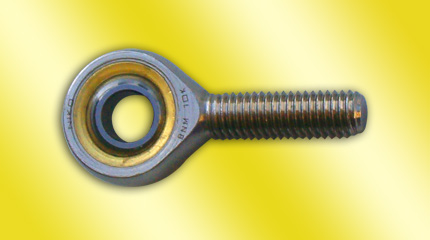

RF34-RA-01
Description

Articulated Head Ø 10

titolo pezzo ricambio

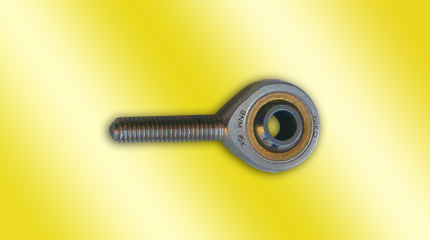

RF35-RA-01
Description

Articulated Head Ø 6

titolo pezzo ricambio

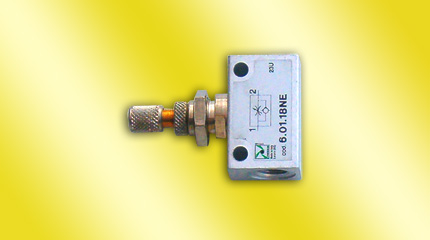

RF36-RA-01
Description

Regolator 1/8

titolo pezzo ricambio
RF36-RA-01
Description

Regolator 1/4

titolo pezzo ricambio

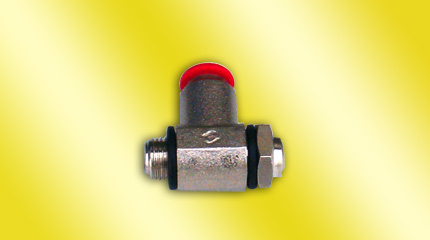

RF37-RA-01
Description

Regolator 1/8 - 6

titolo pezzo ricambio
RF37-RA-01
Description

Regolator 1/4 - 8

titolo pezzo ricambio

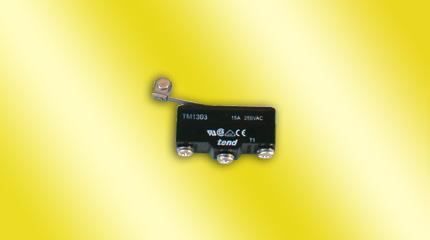

RF38-RA-01
Description

Microcontact

titolo pezzo ricambio

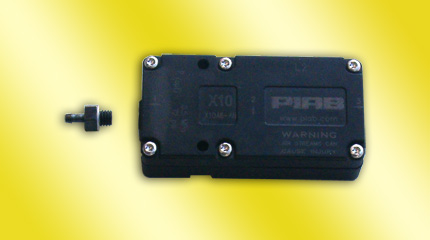

RF39-RA-01
Description

Pump for empty

titolo pezzo ricambio

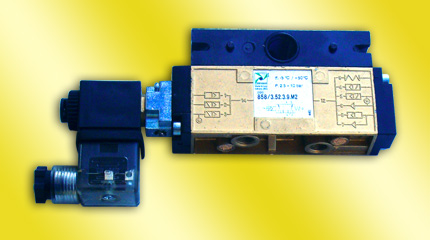

RF40-RA-01
Description

Eletric valve for cylinder

titolo pezzo ricambio

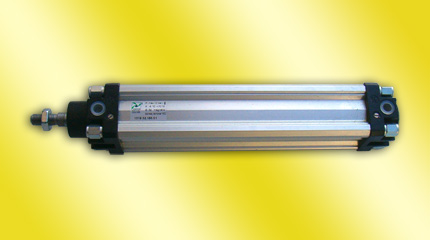

RF41-RA-01
Description

Ø 32 Stroke 150

titolo pezzo ricambio

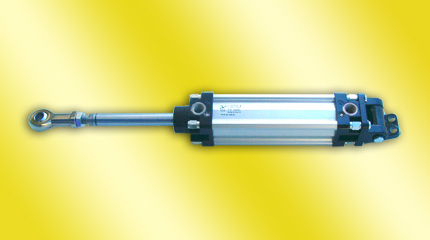

RF42-RA-01
Description

Ø 32 Stroke 100

titolo pezzo ricambio

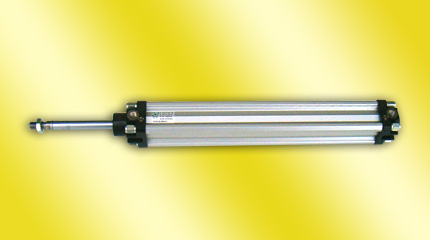

RF43-RA-01
Description

Ø 32 Stroke 250

titolo pezzo ricambio

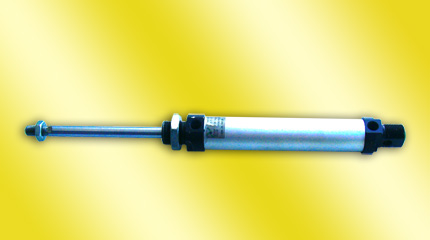

RF44-RA-01
Description

Cylinder for balloon blocking

titolo pezzo ricambio

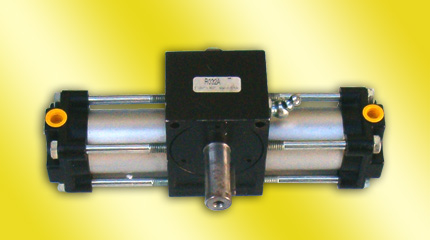

RF45-RA-01
Description

Turning Unit 180°

titolo pezzo ricambio

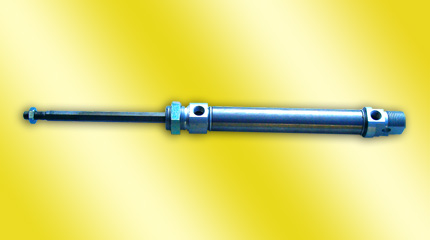

RF46-RA-01
Description

Clamp cylinder

titolo pezzo ricambio

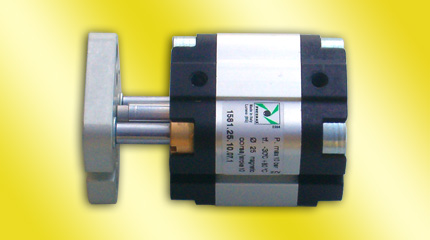

RF47-RA-01
Description

Piston for scraper movement

titolo pezzo ricambio

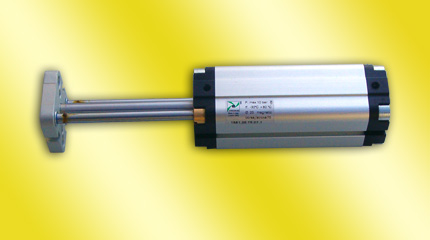

RF48-RA-01
Description

Movement piston

titolo pezzo ricambio

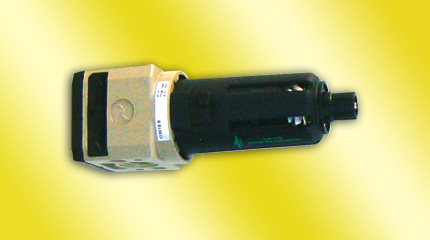

RF49-RA-01
Description

Filter 3/8

titolo pezzo ricambio

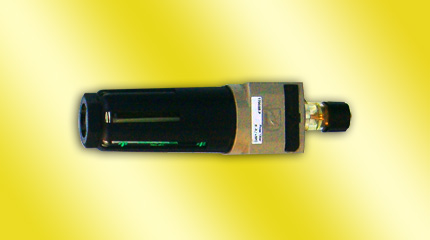

RF50-RA-01
Description

Lubricator

titolo pezzo ricambio

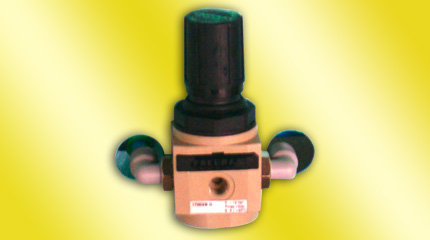

RF51-RA-01
Description

Regolator 1/4

titolo pezzo ricambio

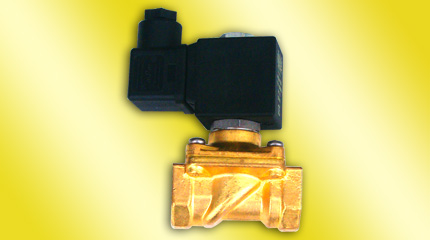

RF52-RA-01
Description

Eletric valve for inflation

titolo pezzo ricambio

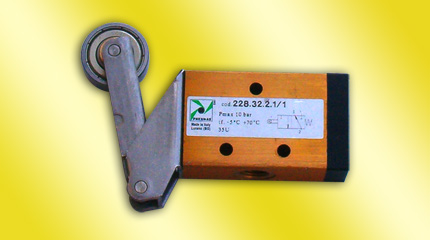

RF53-RA-01
Description

3-ways valve 1/8

titolo pezzo ricambio

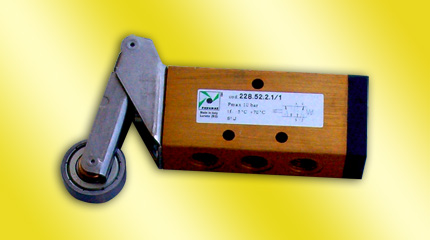

RF54-RA-01
Description

5-ways valve 1/8

titolo pezzo ricambio

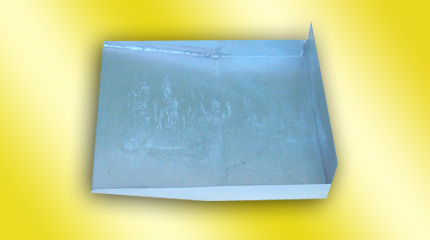

RF55-RA-01
Description

Container

titolo pezzo ricambio
RF56-RA-01
Description

Container head printer

titolo pezzo ricambio
RF23-RA-01
Description

Straight scraper

titolo pezzo ricambio

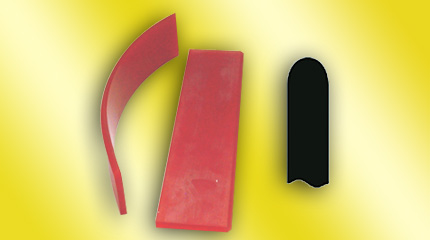

RF24-RA-01
Description

Round scraper

titolo pezzo ricambio

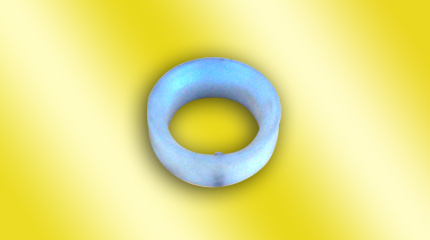

RF57-RA-01
Description

Nylon balloon guide

titolo pezzo ricambio

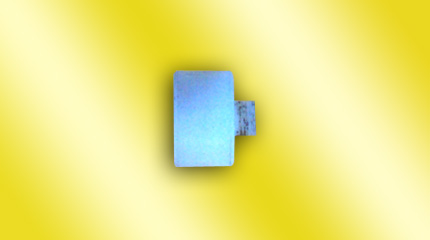

RF58-RA-01
Description

Spacer for balloon hook

titolo pezzo ricambio

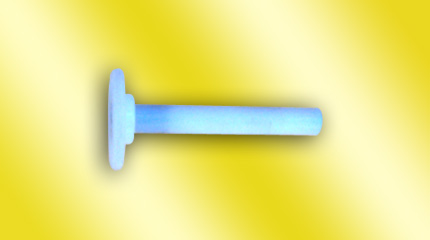

RF59-RA-01
Description

Balloon blocker

titolo pezzo ricambio

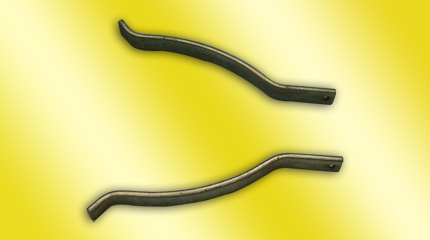

RF60-RA-01
Description

Balloon guide

titolo pezzo ricambio

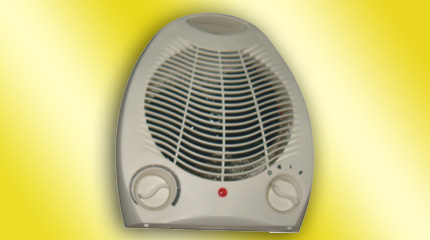

FAN
Description

Hot air drying fan
