RA-01 HPP

Technical Data

Name
RA-01 HPP
Type
Automatic Silkscreen
Description
Automatic silkscreen balloon printing machine - 1-6 colours on 1st side with a perfect printing log.It's available in 4,5,6 colors printing models. It's possible to add one color of printing to the second side of balloon.
ADVANTAGES:
- high printing speed
- easy registration
- minimum waste of energy
- printing quality control by monitor
- automatic drying system
- integration with automatic feeder RF350

Built according to EC Safety Standards and Regulations.

Adding a monitor and some other accessories you can check the printing quality while you're loading balloons on the printing machine.
Availability
On request
Print colors
1, 2, 3, 4, 5, 6

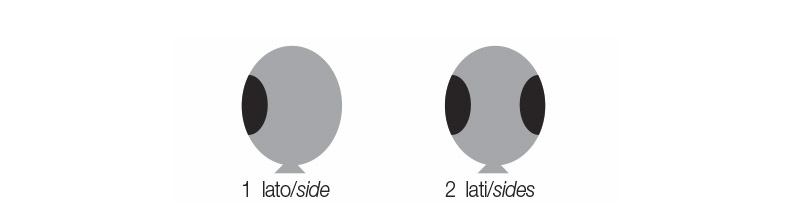

Sides Printing
1-2
Productivity per hour
800-900 pieces per hour
Measures balloons
- 9, 10, 12, 14, 16 inch standard round balloons
Size
cm 260x400x165 h
Weight
700 kg
Drying
Hot air - included
Comments
IDEAL FOR CMYK, PHOTOS IN COLORS ON BALLOONS.
DEFLATED BALLOON PRINTING PROCESS
VOLTAGE AS YOU NEED
Air pressure
8 bar
Air consumption
160 litres per minute
Compressor
Not included

Contact us for more information

With this machine can print …
